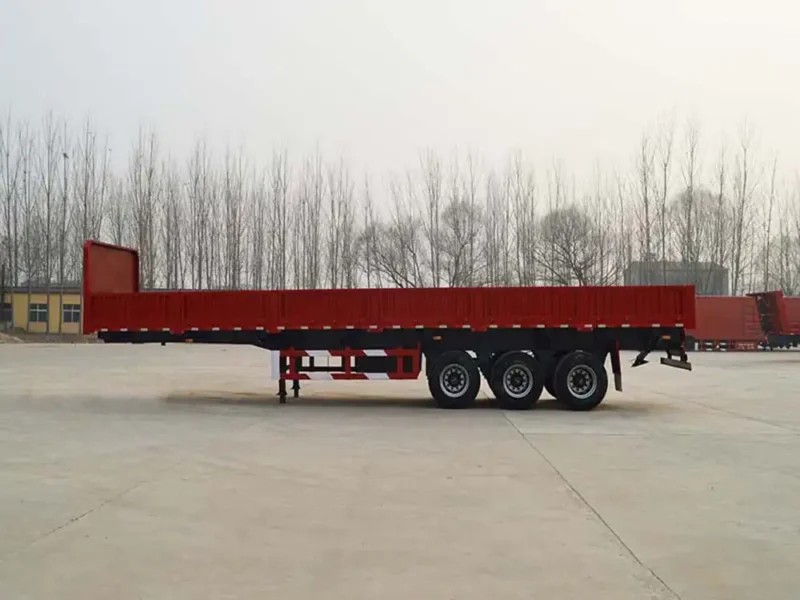

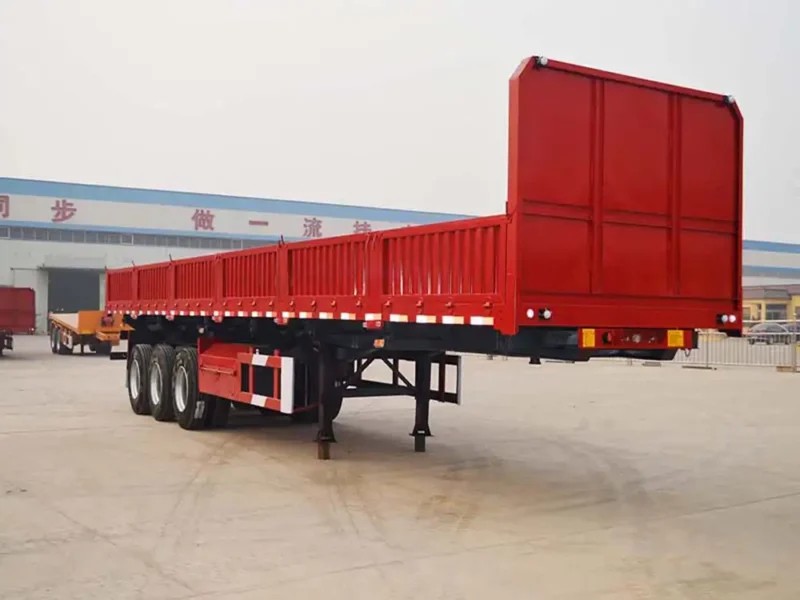

3-осный боковый прицеп
Dimension 12.5m×2.5m×2.4m Dropside Height 0.8m Payload 30-80T Twist Lock 12
Свяжитесь сейчас
Детали продукта
| Dimension | 12.5m×2.5m×2.4m |
| Dropside Height | 0.8m |
| Payload | 30-80T |
| Twist Lock | 12 units for 20ft 40ft container |
| King Pin | Jost brand 2.00 or 3.5 inch |
| Main Beam | Q345B carbon steel, “H” beam |
| Frame Beam | Top 14mm, Middle 10mm, Bottom 16mm, height 500mm |
| Frame Floor | The Thickness is 3mm pattern |
| Axle | 3pcs axles, 16tons JIII / BPW / FUWA brand |
| Landing Gear | Jost brand 28T lifting capacity |
| Suspension | Mechanical suspension or Air suspension |
| Leaf Spring | 90mm(W)*16mm(T)*10 Layer |
| Tires | 12pcs, optional model, 12R22.5, 13R22.5, 315/80R22.5 |
